Android Development: Activity Lifecycle

AndroidManifest.xml is the global registration center for all Activities, otherwise, the app does not know the existence of this activity.

Let’s peek into it:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.example.myfirstactivity">

    <application
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:roundIcon="@mipmap/ic_launcher_round"
        android:supportsRtl="true"
        android:theme="@style/Theme.MyFirstActivity">

        <!-- 这里就是 MainActivity 的注册信息 -->
        <activity
            android:name=".MainActivity"
            android:exported="true">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />
                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>

    </application>

</manifest>

Something to notice here.

• android:name = ".MainActivity" tells the class name of activity. Preceding . stands for package name. In my example, the package name is com.example.myfirstactivity, thus the full name of this class name is com.example.myfirstactivity.MainActivity
• android:exported = "true" tells that this activity can be accessed by external apps.
• <intent-filter>. The action and category tags together tells the system that this activity is the main entrance of the app (ACTION_MAIN) and should appear in phone’s app launcher (CATEGORY_LAUNCHER)

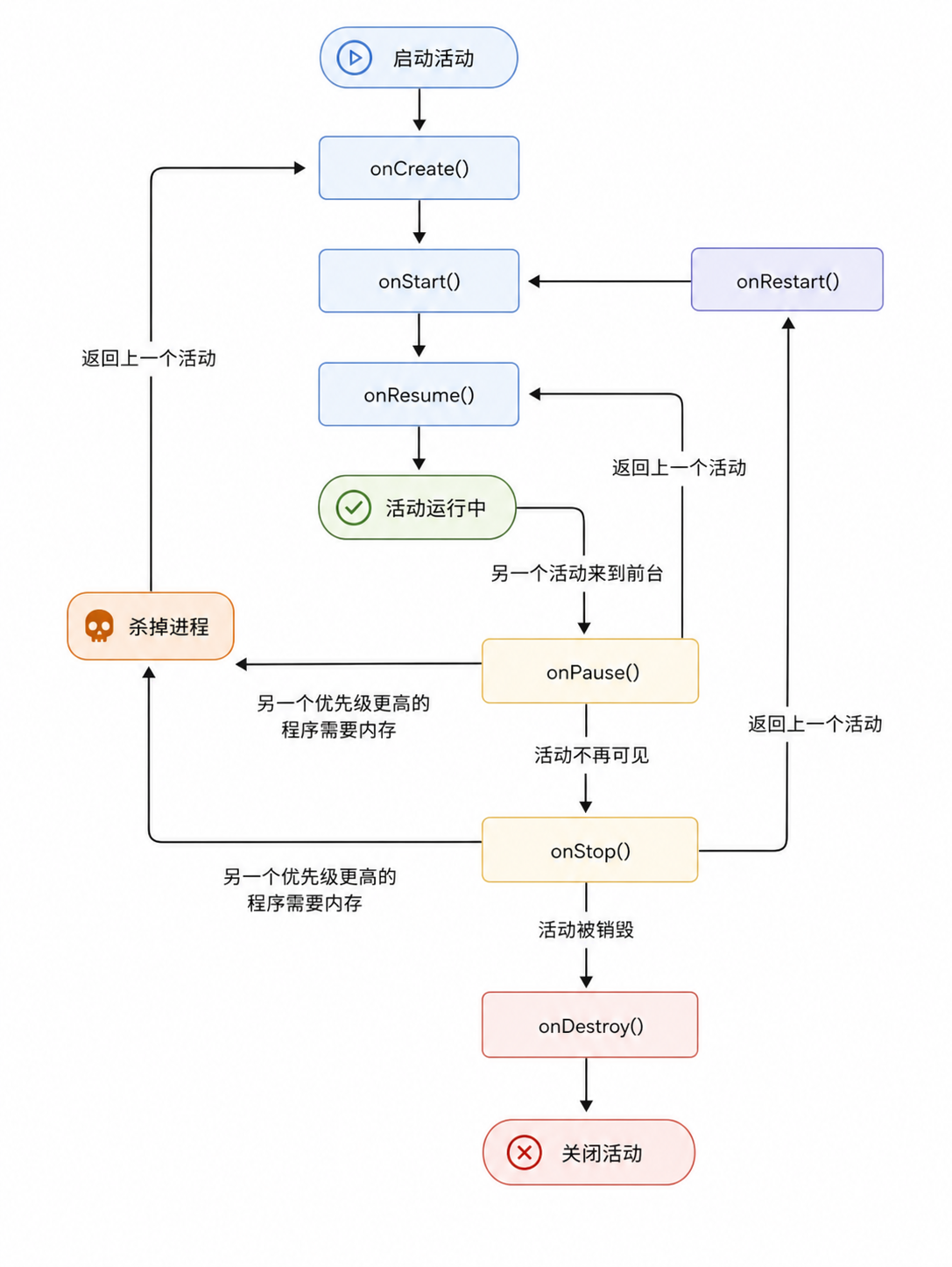

• onCreate(Bundle savedInstanceState)

  Invoked at the first time when it’s created. Invoked only once in its whole lifecycle.

  We may do some initialization jobs here, e.g.

  1. invoke setContentView() to set page layout
  2. initialize variables, and bind views with findViewById
  3. set event listener
  4. restore previously saved state from savedInstanceState

• onStart()

  Invoked at the time when activity is ready to be presented and is going to be visible, but yet to be interacted with.

  We can do some UI-related preparation works here.

• onResume()

  Invoked when activity is completely visible, and receives focus from user and can be interacted with.

  This is the main stage for an activity to interact with the user. e.g., start animation, camera, register event listeners that requires focus.

• onPause()

  Invoked when activity is about to lose focus but still (partially) visible. Typically scenarios include pop-ups, or pressing home.

  Since this the sign of pausing, we should only do light-weight operations because the starting of next activity will wait for the completion of a previous activity’s onPause().

  Some typically operations that can be done in this stage include

  1. pause video/animation
  2. save unsubmitted data/drafts
  3. release system resources, e.g., camera

• onStop()

  Invoked when the activity is completely invisible. At this time, the activity goes to backend. We can perform some more aggressive resource release.

• onRestart()

  Invoked when an already onStop()-ed activity is back to focus, before onStart().

  This usually means this activity is being re-displaying. We can perform some restoring.

  Note that, the invocation order is onRestart() -> onStart() -> onResume()

• onDestroy()

  Invoked only once during the whole lifecycle, at the time before its destruction. We should release all resources here, e.g., cancel network requests, unregister listeners and clean threads.

• onSaveInstanceState(Bundle outState)

  Invoked when activity is about to be destroyedm but before onStop(). We can restore temporary data into this object.

• onRestoreInstanceState(Bundle savedInstanceState)

  Invoked when activity is reconstructed, but after onCreate(). But a more common practice is to restore in onCreate().
