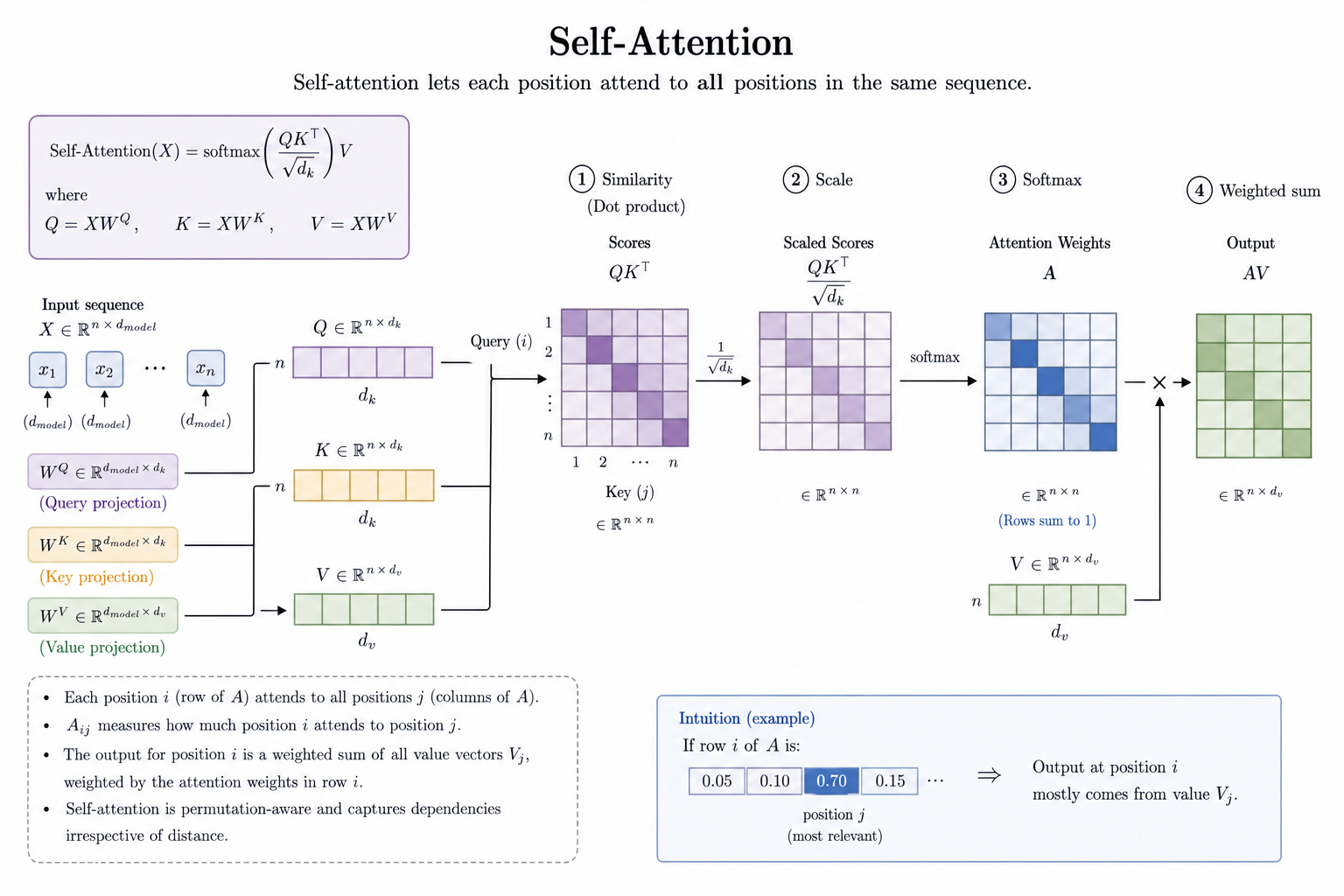

Self Attention

Self attention is built on top of attention module, where $Q,K,V$ matrices all come from the same input, but is multplied by different transformation matrices.

Suppose we have input sequence $X\in\mathbb{R}^{n\times d_{\text{model}}}$, which means a sequence of $n$ tokens with each token has an embedding dimension $d_{\text{model}}$.

We then first transform $X$ into $Q,K,V$ respectively with 3 matrices, $W^Q,W^K\in\mathbb{R}^{d_{\text{model}} \times d_k}$ and $W^V\in\mathbb{R}^{d_{\text{model}}\times d_v}$. Now that $Q,K\in\mathbb{R}^{n\times d_k}$ and $V\in\mathbb{R}^{n\times d_v}$, meaning that input sequence $X$ are projected into 2 “spaces” ($Q,K$ space and $V$ space).

Then the rest is same as naive attention:

1. We first compute $QK^\top$, then divided by $\sqrt{d}$, and then $\text{softmax}()$. The resulting matrix is a score matrix (attention weights) $P\in\mathbb{R}^{n\times n}$, where $i$-th row represents the similarity between $i$-th token and all the tokens in the sequence.
2. We then compute $PV$ to get “meaning interpolation” for each row (i.e., each token). The resulting matrix is $O\in\mathbb{R}^{n\times d_v}$ encodes the “meaning” of each token (i.e., each row)
